Computer Desk Accessories & Parts

los-logo

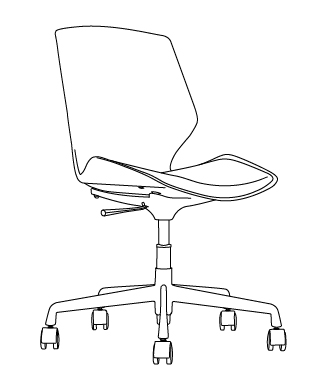

101 Chair

los-3-chair-100
  • Student/Training room chair
  • Modern design
  • Reinforced chair frame for strength and flexibility
  • Curved chair back and padded upholstered cushion for comfort
  • Height adjustable from 15″ to 19.5″
  • Polished aluminum base
  • Twin wheel hooded Polyurethane caster wheels for use on any surface
  • Abrasion resistant seat cushion—exceeds 50,000 cycles Martindale abrasion testing.
  • 5 year warranty
  • Available in Graphite Black with Black seat cushion
  • LOS Student Chair Cut Sheet

Remote Control

LOS3-REMOTE
  • Recommend 1 remote handset per room
  • Allow instructor/trainer to raise and lower monitors simultaneously
  • Lock feature allows instructor/trainer to lock monitors in the up or down position
  • Integrated flashlight
  • Easy channel set and changeability for multiple room requirements
  • Remote Control Instructions

Casters

LOS-3-Casters
  • Allows mobility to individual Line of Sight Workcenters
  • Includes lock to allow stations to be secure when movement is not required
  • Dual wheel, low profile design adds only 3/4″ to workcenter height
  • Sold individually—4 required per workcenter
  • Casters cannot be used with hard wire power options

Worksurface Grommet Cover

LOS-3-Grommet
  • 80 mm diameter 3 piece molded covers
  • Removable cover allows large cords to pass through
  • Cover door rotates to adjust opening to cord sizes
  • Outer liner fills cutout to cover top core material
  • Available in gray, black, & white to accent laminate colors
  • 2 required per top (unless using LOS3-DTP-2P2USB-BK)

Dual Monitor Adaptor

LOS-3-Dual-Monitor-Adaptor
  • Converts single monitor station to dual monitor station
  • Adjustable width mounts fit monitors up to 22″ actual width
  • VESA Quick Release included
  • Mounting hardware included
  • Black powder coated steel construction

Desktop Power

Zens Wireless Charger

los-3-zens-wireless-charger-100-800x618
  • Available in 5 W & 15 W
  • Qi standard wireless charging technology
  • Fits standard 80mm cut out in all LOS3 Workcenter tops
  • Available in black
  • 5 W version works on Qi charge compatible smart phones and smart watches
  • 15 W version works on Qi charge compatible smart phones, tablets, and smart watches
  • Professional grade charger
  • Zens Wireless Charger Cut Sheet

Power USB Charger Grommet

LOS-3-USB-Grommet
  • Fit standard 80 mm cut out in all LOS3 Workcenter tops
  • Two 120 V, 60 Hz grounded power outlets
  • Two 2 A USB charging ports

Parts for Connecting Computer Desks

Back to Back Filler Panels

LOS-3-Back-to-Back-Filler-Panels
  • Covers the vertical space between two LOS3 Workcenters when placed back to back
  • Non-handed design installs left or right as needed
  • Simple magnetic attachment to side for easy installation
  • Use one Filler Panel per visible outside end of back to back LOS3 Workcenters
  • Use in conjunction with Back to Back Filler Plates
  • Color matched powder coated steel construction
  • Filler Panel and Filler Plate Instructions

Back to Back Filler Plates

LOS-3-Back-to-Back-Filler-Plates
  • Covers the horizontal space between two LOS3 Workcenters when placed back to back
  • Keep objects from falling into space behind back to back LOS3 units
  • Use one Filler Plate per set of back to back LOS3 Workcenters
  • Installs with pre-drilled locations under the lids of back to back LOS3 Workcenters
  • Use in conjunction with Back to Back Filler Panels
  • Color matched powder coated steel construction
  • Filler Panel and Filler Plate Instructions

Side by Side Gang Bracket Kit

LOS-3-Gang-Bracket
  • Connect LOS3 Workcenters side by side
  • Keeps rows of LOS3 Workcenters aligned properly
  • Easy installation
  • Powder coated steel construction
  • Required when using daisy chain power options in multiple units
  • Gang Bracket Instructions

Keyboard Drawers

19″ Keyboard Drawer with Tray

LOS-3-19inch-keyboard-drawer
  • 19″ keyboard drawer w/ 8″ right/left sliding mouse surface & palm support
  • Sliding left to right mouse tray
  • 16″ long ball bearing slides (11″ actual extension)
  • Fixed height 2.5″ below underside of worksurface
  • Black 1/4″ phenolic construction
  • Fits only 30″ deep worksurfaces

25″ Keyboard Drawer

LOS-3-25inch-keyboard-drawer
  • 25″ keyboard drawer & palm support
  • 16″ long ball bearing slides (11″ actual extension)
  • Fixed height 2.5″ below underside of worksurface
  • Black 1/4″ phenolic construction
  • Fits only 30″ deep worksurfaces

CPU Holders

On-Board Thin Client/Micro CPU Holder

Thin_Client_CPU_Holder
  • Installs inside LOS Electric and Manual Workcenters
  • Attaches to rear of keyboard holder
  • Simplifies connections and cabling inside of LOS units
  • Installs right or left as required
  • Black powder coated steel construction
  • Thin, Micro CPU Holder Instructions

Large CPU Holder

large-los_CPU_Holder
  • Installs under worksurface
  • Use for larger tower CPU’s
  • Dual adjustable 5′ long straps fit most CPU’s
  • Includes 17″ nylon glide track
  • 360° swivel at track
  • Black powder coated steel construction

Small/Mini Tower CPU Holder

Small_Tower_CPU_Holder

Hang On CPU Holder

Hang_On_CPU_Holder
  • Hangs on front panel of Line of Sight base
  • Adjustable height and width
  • Use for larger tower CPU’s
  • Select model based on CPU size
  • Color matched powder coated steel construction
  • Hang-On CPU Holder Instructions

Wall Corded Power

Power Bar

LOS-3-Power-Bar
  • UL/CSA Certified
  • End power receptacle allows daisy chain connection
    of up to 4 Power Bars in-line
  • Lighted rocker switch for on/off control
  • Includes 15 A circuit breaker
  • Fits all widths of Line of Sight Workcenters
  • Includes mounting brackets and hardware
  • Maximum power load 15 A per daisy chain
  • Total equipment power draw calculations required on site to prevent overload
  • Power Bar Instructions

Power Strip

LOS-3-power-strip
  • Intended for single station applications
  • UL/CSA Certified
  • Lighted rocker switch for on/off control
  • Includes 15 A grounded power cord
  • Includes 15 A circuit breaker
  • Fits all widths of Line of Sight Workcenters
  • Includes mounting hardware

Hard Wire Power

Power Track (4 or 8 Outlet)

LOS-3-Power-Track-4-or-8
  • ETL/CSA Certified
  • Available in 4 or 8 outlets per Power Track (8 outlets recommended for dual display units)
  • Available in 1, 2, or 4 circuit options
  • US Specs allows up to 16 receptacles per circuits 1, 2, 3, and 4 respectively
  • 4 circuit option meets industry standard 8 wire requirements
  • Integrated flex conduit and snap connectors allow easy assembly and daisy chain configuration
  • Requires 1 dedicated 120 V, 60 hZ, 20 A power source per circuit
  • Daisy chain 16 A max load per circuit
  • Includes mounting & installation hardware
  • Power Track Instructions

Power Entry Cable

LOS-3-power-entry-cable
  • 8 wire flex conduit Power Entry Cable
  • Connect up to 4 dedicated 120 V, 20 A circuits and 80 individual 120 V receptacles
  • Hard-wire connection via J-Box or power pole to building power source
  • Snap locks into Power Track for easy connection
  • Use one entry per run based on circuits chosen and maximum connection recommendations

Pass Through / Extension Cable

LOS-3-pass-through-extension-cable
  • 24″ Length extends Power Track cables
  • Male/female plug ends
  • Extra cable required for back to back hard wire power transfer connection
  • Maximum circuit and receptacle limits apply
