LOS small logoDual User Manual
Computer Desk

Line of Sight Dual User Manual Computer Desks are designed to accommodate two individual displays and the equipment needed for two students. The counter balance monitor lift system allows users to raise and lower the monitors individually and with minimal effort. Dual User Manual Computer Desks include: internal holder for keyboard and mouse, removable front and rear access panels, three cable grommets in front panel, two cable grommets in the rear panel, and one cable grommet in each side panel.

CONFIGURE YOUR COMPUTER DESK

Computer Desk Specifications

  • 29″ high worksurface
  • Bright polished aluminum feet
  • Counter balance manual monitor lift
  • Monitor lift capacity: 14 pounds
  • Full side panels, removable front and back panels included
  • Locking front & rear panel option
  • Integrated cable management
  • Color matched cable grommets in front, side, and rear locations
  • Internal keyboard & mouse holder included
  • 26″ & 30″ deep worksurface options
  • Silver, black, & white base finish options
  • Powder coated steel construction
  • Meets ADA fixed height requirements with 30″D worksurface
  • Ganging Brackets
  • Back to Back Panels & Filler Plates
  • Worksurface
  • Grommet Covers
  • Desktop Power
  • CPU Holders
  • Power distribution systems

Size and Finish Options

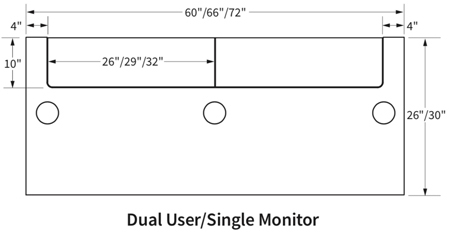

Worksurface Dimensions

worksurface-dims

Computer Desk Base

View the Color Selection Guide for all Computer Desk finish color options

los-computer-desk-base-color-options

Worksurface Laminates



  • 1″ thick standard surfaces are comprised of high pressure laminates with a balanced construction backer
  • Laminates exceed the performance requirements of NEMA LD3
  • Solvent-free, water-based adhesives
  • Grain directional on all wood grain laminates runs side to side

Worksurface Edge



  • Edge choices are Edge Band or T-Mold
  • Edge Band is 2mm thick
  • Edge Band colors matched to Laminates
los-edge-bands

Computer Desk Accessories & Parts

Worksurface Grommet Cover

LOS-3-Grommet
  • 80 mm diameter 3 piece molded covers
  • Removable cover allows large cords to pass through
  • Cover door rotates to adjust opening to cord sizes
  • Outer liner fills cutout to cover top core material
  • Available in gray, black, & white to accent laminate colors
  • 2 required per top (unless using LOS3-DTP-2P2USB-BK)

Desktop Power

Zens Wireless Charger

los-3-zens-wireless-charger-100-800x618
  • Available in 5 W & 15 W
  • Qi standard wireless charging technology
  • Fits standard 80mm cut out in all LOS3 Workcenter tops
  • Available in black
  • 5 W version works on Qi charge compatible smart phones and smart watches
  • 15 W version works on Qi charge compatible smart phones, tablets, and smart watches
  • Professional grade charger

Power USB Charger Grommet

LOS-3-USB-Grommet
  • Fit standard 80 mm cut out in all LOS3 Workcenter tops
  • Two 120 V, 60 Hz grounded power outlets
  • Two 2 A USB charging ports

Parts for Connecting Computer Desks

Back to Back Filler Panels

LOS-3-Back-to-Back-Filler-Panels
  • Covers the vertical space between two LOS3 Workcenters when placed back to back
  • Non-handed design installs left or right as needed
  • Simple magnetic attachment to side for easy installation
  • Use one Filler Panel per visible outside end of back to back LOS3 Workcenters
  • Use in conjunction with Back to Back Filler Plates
  • Color matched powder coated steel construction
  • Filler Panel and Filler Plate Instructions

Back to Back Filler Plates

LOS-3-Back-to-Back-Filler-Plates
  • Covers the horizontal space between two LOS3 Workcenters when placed back to back
  • Keep objects from falling into space behind back to back LOS3 units
  • Use one Filler Plate per set of back to back LOS3 Workcenters
  • Installs with pre-drilled locations under the lids of back to back LOS3 Workcenters
  • Use in conjunction with Back to Back Filler Panels
  • Color matched powder coated steel construction
  • Filler Panel and Filler Plate Instructions

Side by Side Gang Bracket Kit

LOS-3-Gang-Bracket
  • Connect LOS3 Workcenters side by side
  • Keeps rows of LOS3 Workcenters aligned properly
  • Easy installation
  • Powder coated steel construction
  • Required when using daisy chain power options in multiple units
  • Gang Bracket Instructions

CPU Holders

On-Board Thin Client/Micro CPU Holder

Thin_Client_CPU_Holder
  • Installs inside LOS Electric and Manual Workcenters
  • Attaches to rear of keyboard holder
  • Simplifies connections and cabling inside of LOS units
  • Installs right or left as required
  • Black powder coated steel construction
  • Thin, Micro CPU Holder Instructions

Large CPU Holder

large-los_CPU_Holder
  • Installs under worksurface
  • Use for larger tower CPU’s
  • Dual adjustable 5′ long straps fit most CPU’s
  • Includes 17″ nylon glide track
  • 360° swivel at track
  • Black powder coated steel construction

Small/Mini Tower CPU Holder

Small_Tower_CPU_Holder

Hang On CPU Holder

Hang_On_CPU_Holder
  • Hangs on front panel of Line of Sight base
  • Adjustable height and width
  • Use for larger tower CPU’s
  • Select model based on CPU size
  • Color matched powder coated steel construction
  • Hang-On CPU Holder Instructions

Wall Corded Power

Power Bar

LOS-3-Power-Bar
  • UL/CSA Certified
  • End power receptacle allows daisy chain connection
    of up to 4 Power Bars in-line
  • Lighted rocker switch for on/off control
  • Includes 15 A circuit breaker
  • Fits all widths of Line of Sight Workcenters
  • Includes mounting brackets and hardware
  • Maximum power load 15 A per daisy chain
  • Total equipment power draw calculations required on site to prevent overload
  • Power Bar Instructions

Power Strip

LOS-3-power-strip
  • Intended for single station applications
  • UL/CSA Certified
  • Lighted rocker switch for on/off control
  • Includes 15 A grounded power cord
  • Includes 15 A circuit breaker
  • Fits all widths of Line of Sight Workcenters
  • Includes mounting hardware

Hard Wire Power

Power Track (4 or 8 Outlet)

LOS-3-Power-Track-4-or-8
  • ETL/CSA Certified
  • Available in 4 or 8 outlets per Power Track (8 outlets recommended for dual display units)
  • Available in 1, 2, or 4 circuit options
  • US Specs allows up to 16 receptacles per circuits 1, 2, 3, and 4 respectively
  • 4 circuit option meets industry standard 8 wire requirements
  • Integrated flex conduit and snap connectors allow easy assembly and daisy chain configuration
  • Requires 1 dedicated 120 V, 60 hZ, 20 A power source per circuit
  • Daisy chain 16 A max load per circuit
  • Includes mounting & installation hardware
  • Power Track Instructions

Power Entry Cable

LOS-3-power-entry-cable
  • 8 wire flex conduit Power Entry Cable
  • Connect up to 4 dedicated 120 V, 20 A circuits and 80 individual 120 V receptacles
  • Hard-wire connection via J-Box or power pole to building power source
  • Snap locks into Power Track for easy connection
  • Use one entry per run based on circuits chosen and maximum connection recommendations

Pass Through / Extension Cable

LOS-3-pass-through-extension-cable
  • 24″ Length extends Power Track cables
  • Male/female plug ends
  • Extra cable required for back to back hard wire power transfer connection
  • Maximum circuit and receptacle limits apply

Assembly

  • Includes full chassis, top, and lid
  • Accessories not included
  • Packed on individual skids/pallets
  • Assembly fee is net price per unit—not discountable
  • Standard lead times apply
