Ascent 3 Stage
Sit Stand Desk

The sit stand desk for virtually anyone. The ASCENT 3 STAGE delivers better ergonomics through greater range of adjustability. With over 25″ of height adjustment, users can be seated at a starting height of just under 24″ and a standing height of over 49″ (with most industry standard worksurfaces). Our programmable switch with 4 memory presets provides convenient, intuitive operation. The base is compatible with rectangular worksurfaces ranging from 48″ to 84″ wide and up to 84″ corner units using the 2 or 3 leg frameset options (respectively). The Ascent base is delivered in one box with easy to assemble components so installation costs are minimized.

Ascent 3 Features

  • Height Range: 24″ to 49.5″
  • Total Travel Distance: 25.5″
  • Switch: Digital Readout w/ 4 programmable settings
  • Frameset Style: “C-style” side rails & low-profile feet provide mobile pedestal compatibility
  • Travel Speed: 1.4″/second• Standby Power: ≤0.1 W
  • Frameset Colors: Silver, black, white
  • Certifications: ANSI BIFMA x5.5, TÜV Rheinland Certified
  • Warranty: 5 years on all components
  • Collision Detection: Software based anti-collision function automatically stops table to prevent damage

As of January 2, 2019 all Ascent Table Bases will carry a 6% of net price tariff surcharge until further notice.

  • Finish Color Options

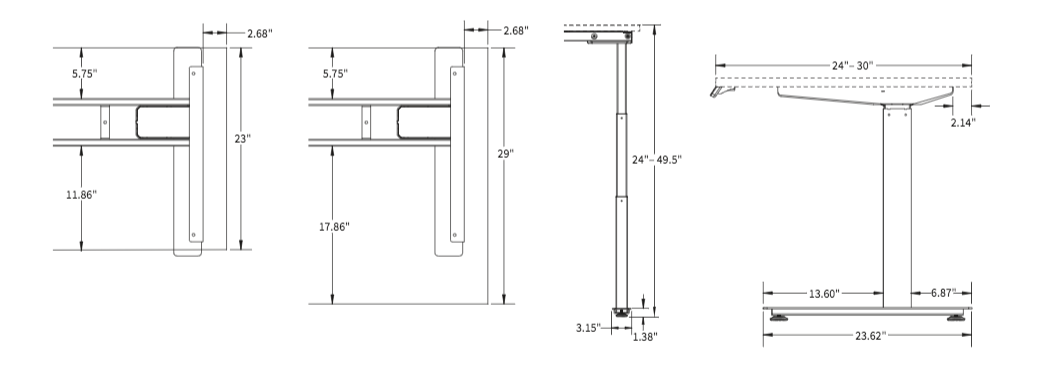

Dimensions

ascent-3-dims

Sit Stand Worksurfaces

Workrite’s standard laminated worksurface program features 25 popular Wilsonart® laminates with coordinating 3 mm edgeband options. For larger, more accurate swatches of available laminates, and suggested laminate to edgeband pairings, please refer to the Materials & Finishes tab of the Workrite binder.

2-Leg Worksurfaces

Rectangular

rectangle-worksurface
  • Sierra HX Electric
  • Essentia
  • Fundamentals
  • Cascade
  • Sierra HXL Crank
  • Ascent

Offset Corner

offset-corner-worksurface
  • Sierra HX Electric
  • Essentia
  • Fundamentals
  • Sierra HXL Crank

Equal Corner

equal-corner-worksurface
  • Sierra HX Electric
  • Essentia
  • Fundamentals
  • Sierra HXL Crank

120 Degree

120-degree-worksurface
  • Sierra HX Electric
  • Essentia
  • Fundamentals
  • Sierra HXL Crank

3-Leg Worksurfaces

Equal Corner

equal-corner-worksurface
  • Sierra HX Electric
  • Essentia
  • Fundamentals
  • Ascent

Offset Corner

offset-corner-worksurface
  • Sierra HX Electric
  • Essentia
  • Fundamentals
  • Ascent

Laminate Price – Tier 1

Laminate Price – Tier 2

Laminate Price – Tier 3



Note: These colors are not guaranteed to be accurately reproduced. For best results order actual Laminate Material Samples by calling (800) 463-7731

Edgeband

All laminates above are considered standard. Other laminate options are available, but require a non-standard product request. Contact your sales representative or Workrite Customer Service to inquire about a non-standard product request. For additional laminate options from Wilsonart, click the button below to visit their Design Library.

More Laminates from www.Wilsonart.com
