LOS small logoADA Sit Stand
Computer Desk

Line of Sight Electric ADA Sit Stand Computer Desks are designed to easily accommodate special seating needs in virtually any learning environment. The workcenter can neatly and efficiently hold a single monitor with equipment and delivers a sit-stand height range from 29″ to 45″. Two switches independently control the electric lift systems, enabling the user to adjust the height of the worksurface or raise and lower the monitor as needed. Be sure to consult local building codes to ensure that your floorplan incorporates adequate aisle space and the appropriate number of ADA Workcenters. TheADA Sit Stand Computer Desks include: internal holder for keyboard and mouse, removable front and rear access panels, cable management troughs, two cable grommets in the front and rear panels and one grommet in both the right and left side panels.

CONFIGURE YOUR COMPUTER DESK

Computer Desk Specifications

  • Electric height adjustable
  • 29″ to 45″ ADA and sit-stand height range
  • Ultra quiet actuator system
  • Monitor lift collision detection
  • Monitor lift capacity: 40 pounds
  • VESA Quick Release monitor mount included
  • Battery back up system to close units on power outage
  • Full side panels and removable front and rear panel included
  • Locking front and rear panel option
  • Integrated cable management
  • Color matched cable grommets in front, side, and rear locations
  • Internal keyboard & mouse holder included
  • 30″ deep worksurface only
  • Silver, black, & white base finish options
  • Powder coated steel construction
  • Meets ADA adjustable height and limited sit-stand requirements
  • Ships fully assembled
  • Remote Control
  • Worksurface
  • Grommet Covers
  • Desktop Power
  • CPU Holders
  • Power distribution systems

Size and Finish Options

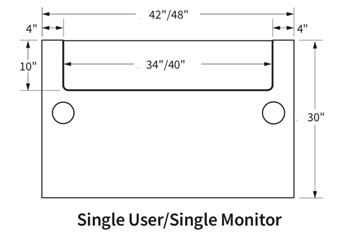

Worksurface Dimensions

ada-worksurface-dims

Computer Desk Base

View the Color Selection Guide for all Computer Desk finish color options

los-computer-desk-base-color-options

Worksurface Laminates



  • 1″ thick standard surfaces are comprised of high pressure laminates with a balanced construction backer
  • Laminates exceed the performance requirements of NEMA LD3
  • Solvent-free, water-based adhesives
  • Grain directional on all wood grain laminates runs side to side

Worksurface Edge



  • Edge choices are Edge Band or T-Mold
  • Edge Band is 2mm thick
  • Edge Band colors matched to Laminates
los-edge-bands

Computer Desk Accessories & Parts

Remote Control

LOS-Remote-LOS3-REMOTE
  • Recommend 1 remote handset per room
  • Allow instructor/trainer to raise and lower monitors simultaneously
  • Lock feature allows instructor/trainer to lock monitors in the up or down position
  • Integrated flashlight
  • Easy channel set and changeability for multiple room requirements
  • Remote Control Instructions

Worksurface Grommet Cover

LOS Worksurface Grommet Cover - LOS3-GROMMET-80-B
  • 80 mm diameter 3 piece molded covers
  • Removable cover allows large cords to pass through
  • Cover door rotates to adjust opening to cord sizes
  • Outer liner fills cutout to cover top core material
  • Available in gray, black, & white to accent laminate colors
  • 2 required per top (unless using LOS3-DTP-2P2USB-BK)

Desktop Power

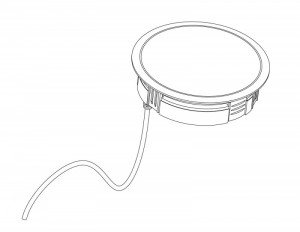

Zens Wireless Charger

LOS Zens Wireless Charger - ACC-ZEN1-5W-B
  • Available in 5 W & 15 W
  • Qi standard wireless charging technology
  • Fits standard 80mm cut out in all LOS3 Workcenter tops
  • Available in black
  • 5 W version works on Qi charge compatible smart phones and smart watches
  • 15 W version works on Qi charge compatible smart phones, tablets, and smart watches
  • Professional grade charger

Power USB Charger Grommet

LOS Power USB Grommet - LOS3-DTP-2P2USBC-BK
  • Fit standard 80 mm cut out in all LOS3 Workcenter tops
  • Two 120 V, 60 Hz grounded power outlets
  • Two 2 A USB charging ports

CPU Holders

On-Board Thin Client/Micro CPU Holder

LOS On-Board Thin Client:Micro CPU Holder - LOS-CPU-MTC-B
  • Installs inside LOS Electric and Manual Workcenters
  • Attaches to rear of keyboard holder
  • Simplifies connections and cabling inside of LOS units
  • Installs right or left as required
  • Black powder coated steel construction
  • Thin, Micro CPU Holder Instructions

Large CPU Holder

LOS Large CPU Holder - VE-CPUST
  • Installs under worksurface
  • Use for larger tower CPU’s
  • Dual adjustable 5′ long straps fit most CPU’s
  • Includes 17″ nylon glide track
  • 360° swivel at track
  • Black powder coated steel construction

Small/Mini Tower CPU Holder

LOS Small:Mini Tower CPU Holder - VE-CPU-SMALL

Hang On CPU Holder

LOS Hang-On CPU Holder - LOS-CPUT-M-A-SM
  • Hangs on front panel of Line of Sight base
  • Adjustable height and width
  • Use for larger tower CPU’s
  • Select model based on CPU size
  • Color matched powder coated steel construction
  • Hang-On CPU Holder Instructions

Wall Corded Power

Power Bar

LOS-3-Power-Bar
  • UL/CSA Certified
  • End power receptacle allows daisy chain connection
    of up to 4 Power Bars in-line
  • Lighted rocker switch for on/off control
  • Includes 15 A circuit breaker
  • Fits all widths of Line of Sight Workcenters
  • Includes mounting brackets and hardware
  • Maximum power load 15 A per daisy chain
  • Total equipment power draw calculations required on site to prevent overload
  • Power Bar Instructions

Power Strip

LOS-3-power-strip
  • Intended for single station applications
  • UL/CSA Certified
  • Lighted rocker switch for on/off control
  • Includes 15 A grounded power cord
  • Includes 15 A circuit breaker
  • Fits all widths of Line of Sight Workcenters
  • Includes mounting hardware
